USER GUIDE FOR MODULE CAP10CNC

FEB-2020

This document is applied for the following products

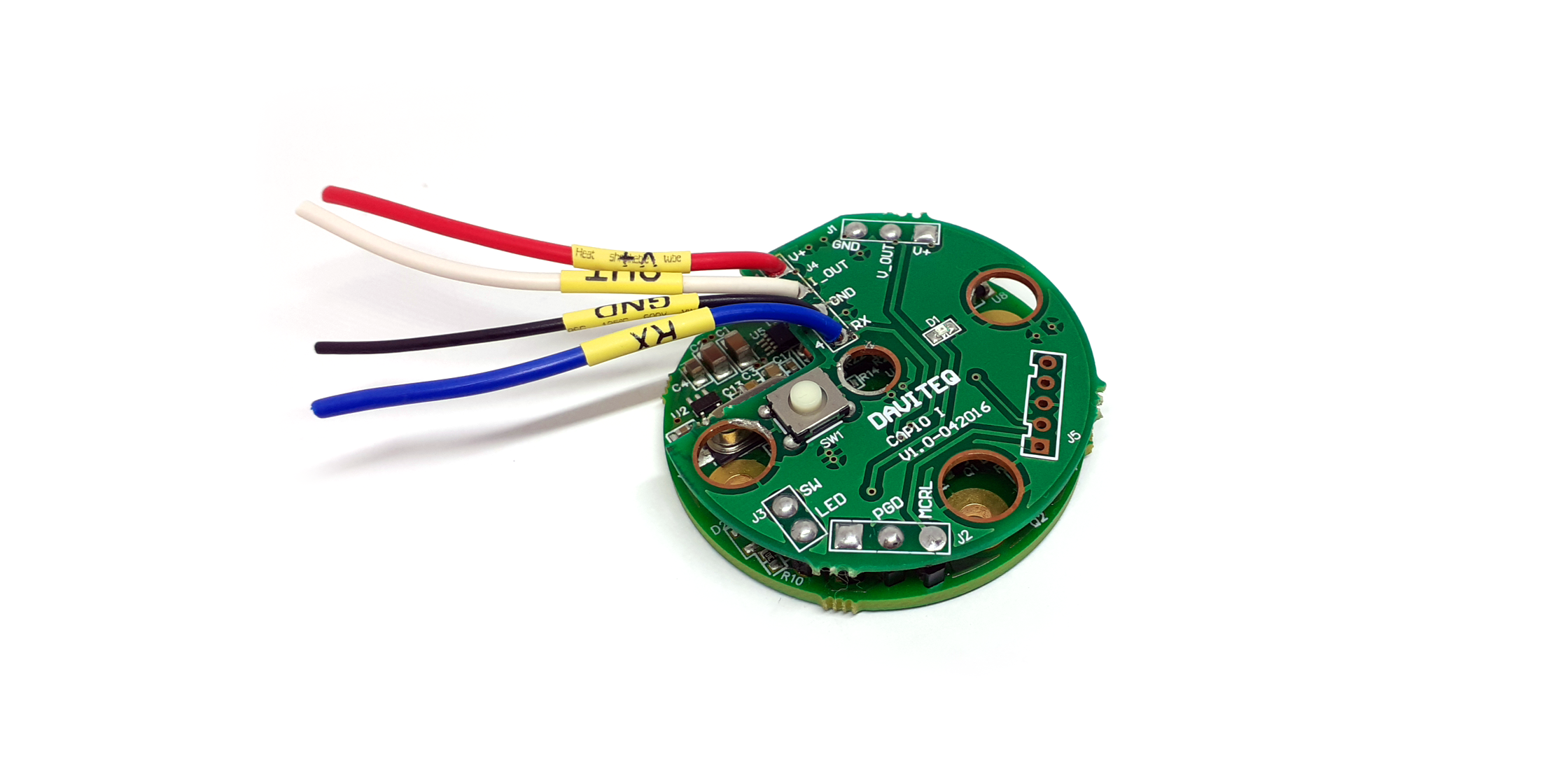

1. Module CAP10CNC




2. Specification

Output 4-20mA output (with 250 ohms precision resistor), or RS485/ModbusRTU
Power supply 8..50VDC
Consumption max 35mA
Capacitance range
0-400 pF
Working temperature -40 oC .. + 85 oC

3. Instructions for configuration

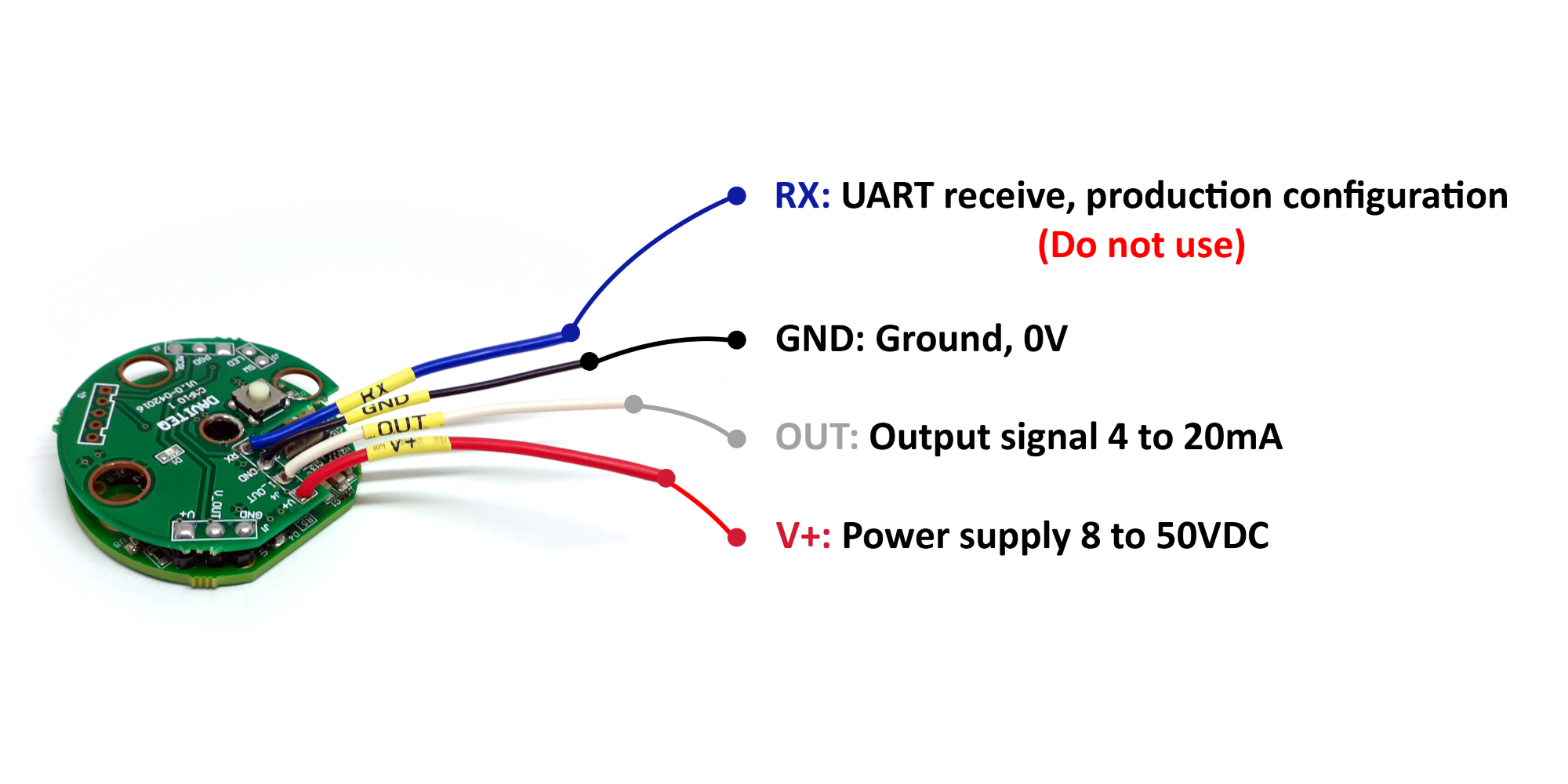

3.1 Wiring

Please wiring as shown below:

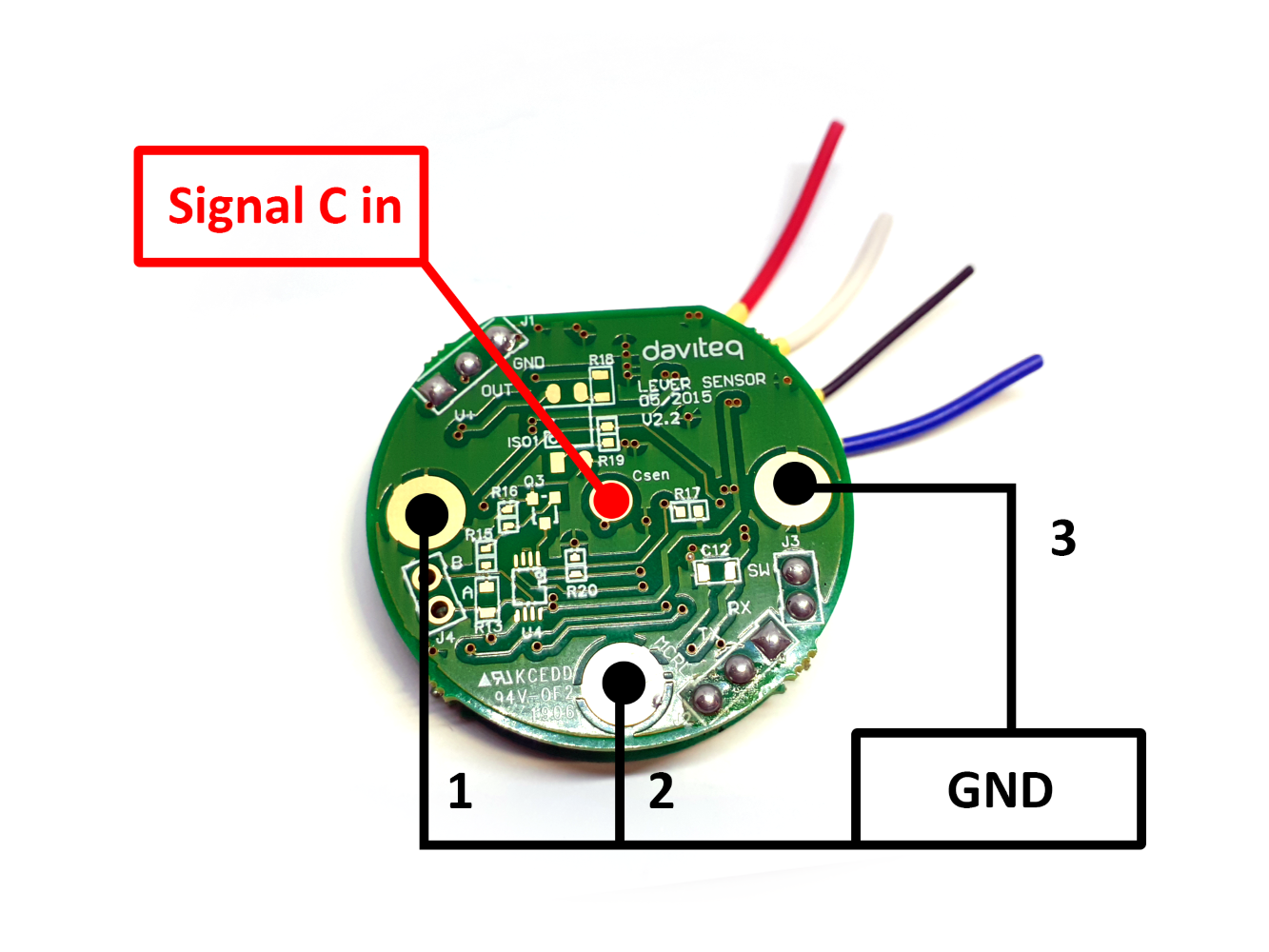

3.2 Soldering wire connected to input C signal

  • Solder the signal C to the middle point of the circuit.
  • Choose 1 of 3 points on the edge of the circuit (1 or 2 or 3) to connect GND.

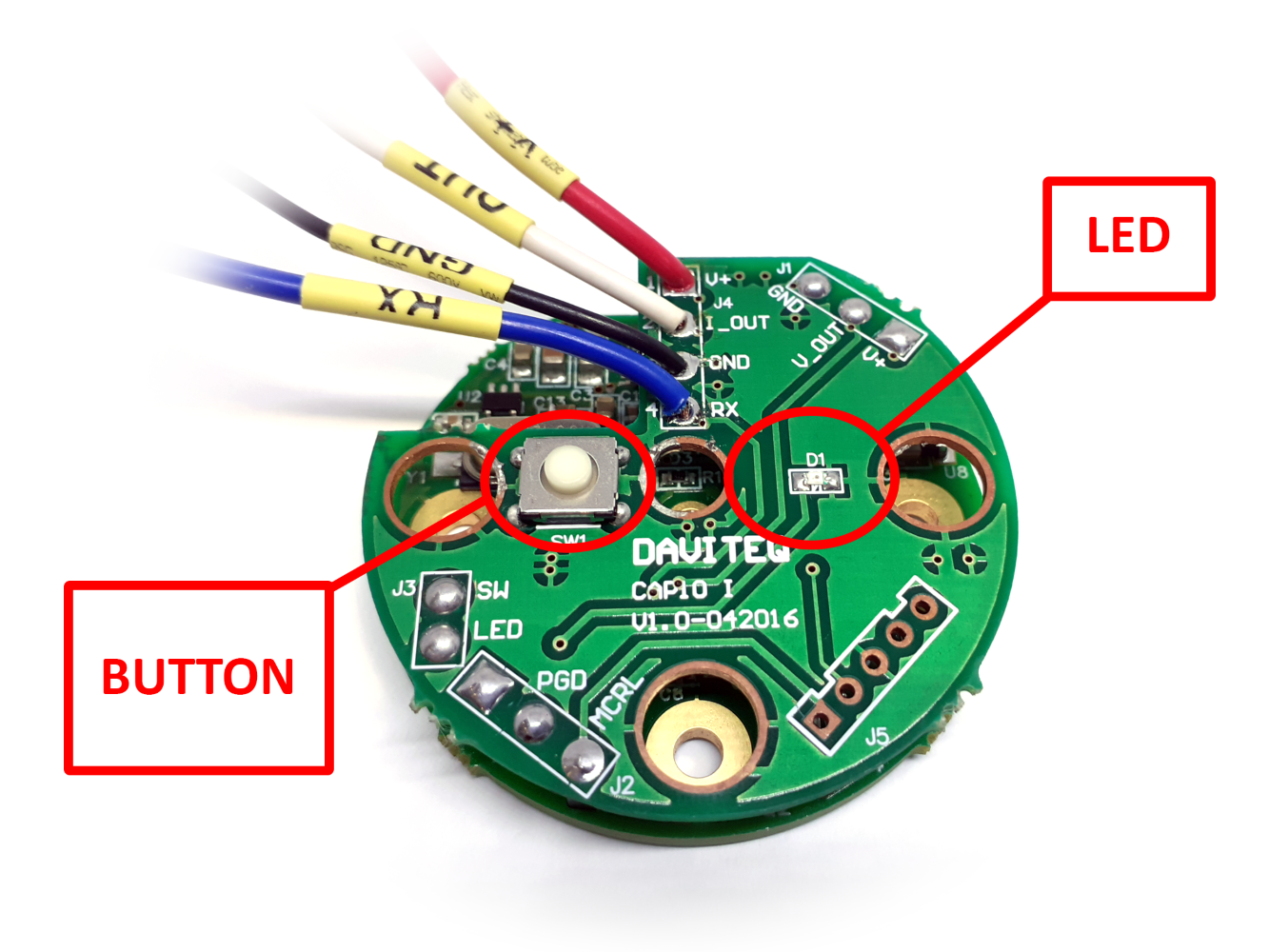

3.3 Calibration

Zero: Power the circuit, press the button 3 times consecutively then wait for the LED to blink continuously, we will press one more time. Disconnect power.

Full-scale: Power the circuit, press the button 3 times consecutively then wait for the LED to blink continuously, we will hold the button, when the light is off we take our hands off.
