USER GUIDE FOR WIRELESS AMBIENT TEMPERATURE SENSOR WS433-M12F-ATE

WS433-M12F-ATE-MN-EN-01

FEB-2020

This document is applied for the following products

SKU

WS433-M12F-ATE

HW Ver. 2.5 FW Ver. 5.04
Item Code WS433-M12F Wireless Sensor Transmitter 433Mhz, compatible with all DULP sensor modules, AA 1.5VDC battery, IP67

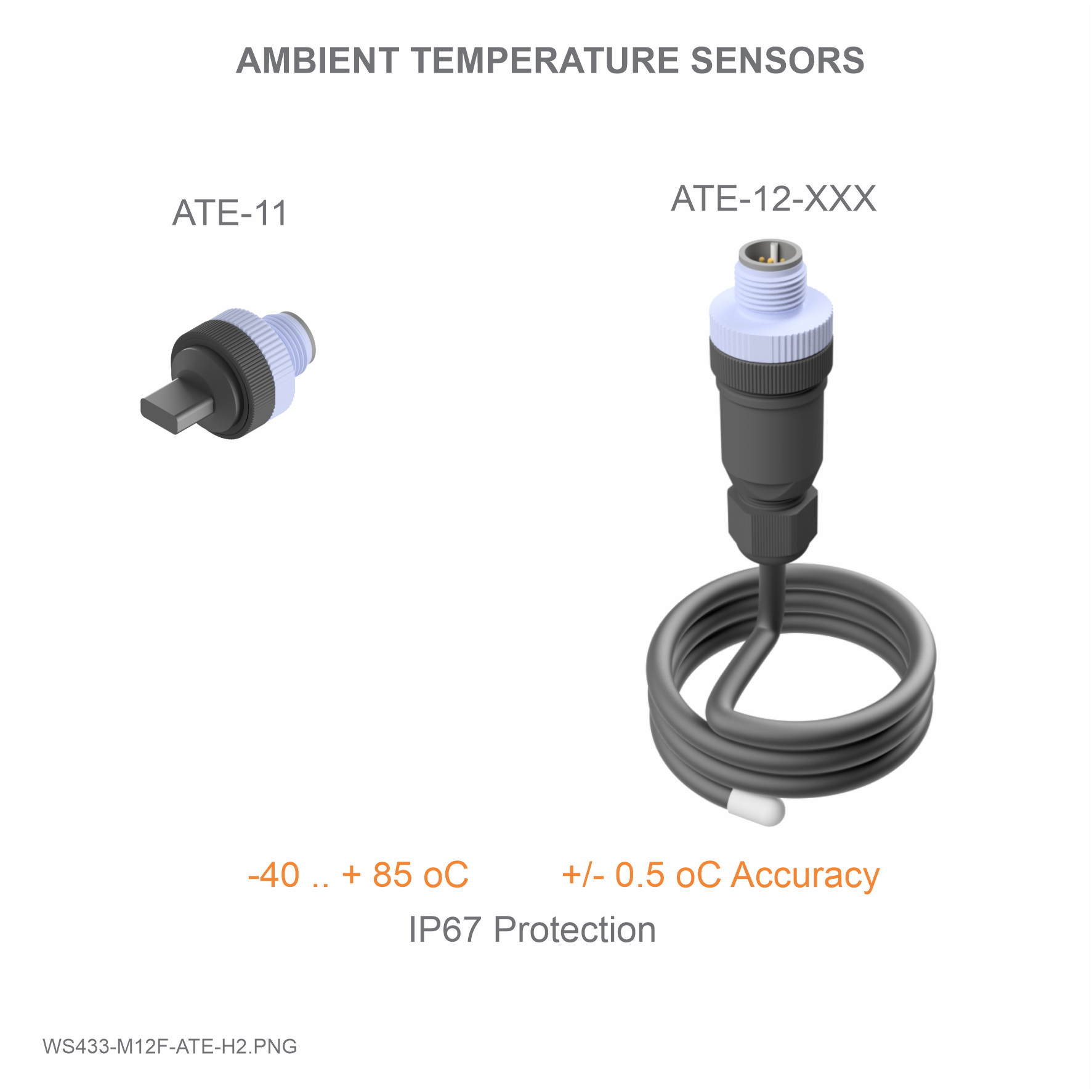

  ATE-11 Compact ambient Temperature Sensor DULP module, M12-male connector
  ATE-12-300 300mm Cable type ambient Temperature Sensor DULP module, M12-male connector
Notes * Must order for both wireless transmitter and sensor module

1. Functions Change Log

HW Ver. FW Ver. Release Date Functions Change
2.5 5.04 NOV-2019
  • Change RF data rate by button

2. Introduction

Wireless Ambient Temperature Sensor is a combination of wireless sensor transmitter WS433-M12F and ambient temperature sensor ATE, it utilizes Digital temperature sensor delivers high accuracy measurement in range -35 to + 70oC. The wireless portion is Sub-GHz technology from Texas Instruments allows long range transmission at ultra-low power consumption. It will connect 2-way wirelessly to the wireless co-ordinator WS433-CL to send data and receiving the configuration. It can be configured the operation parameters like data sending interval, health check cycle...remotely from Globiots platform or via ModbusRTU software (thru the WS433-CL). Its default data rate is 50 kbps, can be switched to 625 bps to increase the communication range. It can last up to 10 years with a single AA battery. There are a lot of applications as environment monitoring for office, warehouse, data center, hospital, agriculture...


3. Specification

SENSOR SPECIFICATION :
Sensor Digital type, factory calibrated, IP67, immersible to ice-water for quick validation
Measuring range -35 .. + 70 oC
Accuracy & Resolution +/- 0.5oC, 0.125oC
Material PA plastic with PVC cable
Electrical connection M12-male connector
WIRELESS SPECIFICATION :
Data speed Up to 50kbps
Tranmission distance, LOS 500m
Antenna Internal Antenna, 3 dbi
Battery 01 x AA 1.5VDC, up to 10-year operation, depends on configuration
Frequency Band ISM 433Mhz, Sub-GHz technology from Texas Instrument, USA
International Compliance ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan)
Security Standard AES-128
Operating temperature of PCB -40oC..+60oC (with AA L91 Energizer)
Housing Poly-carbonate, IP67
Installation method L-type bracket SUS304 , by M4 screws or double-sided 3M tape (included)
Product dimensions 125x30x30mm
Net weight (without battery) < 60g
Box dimension 190x50x50mm
Gross weight 100g

4. Product Pictures

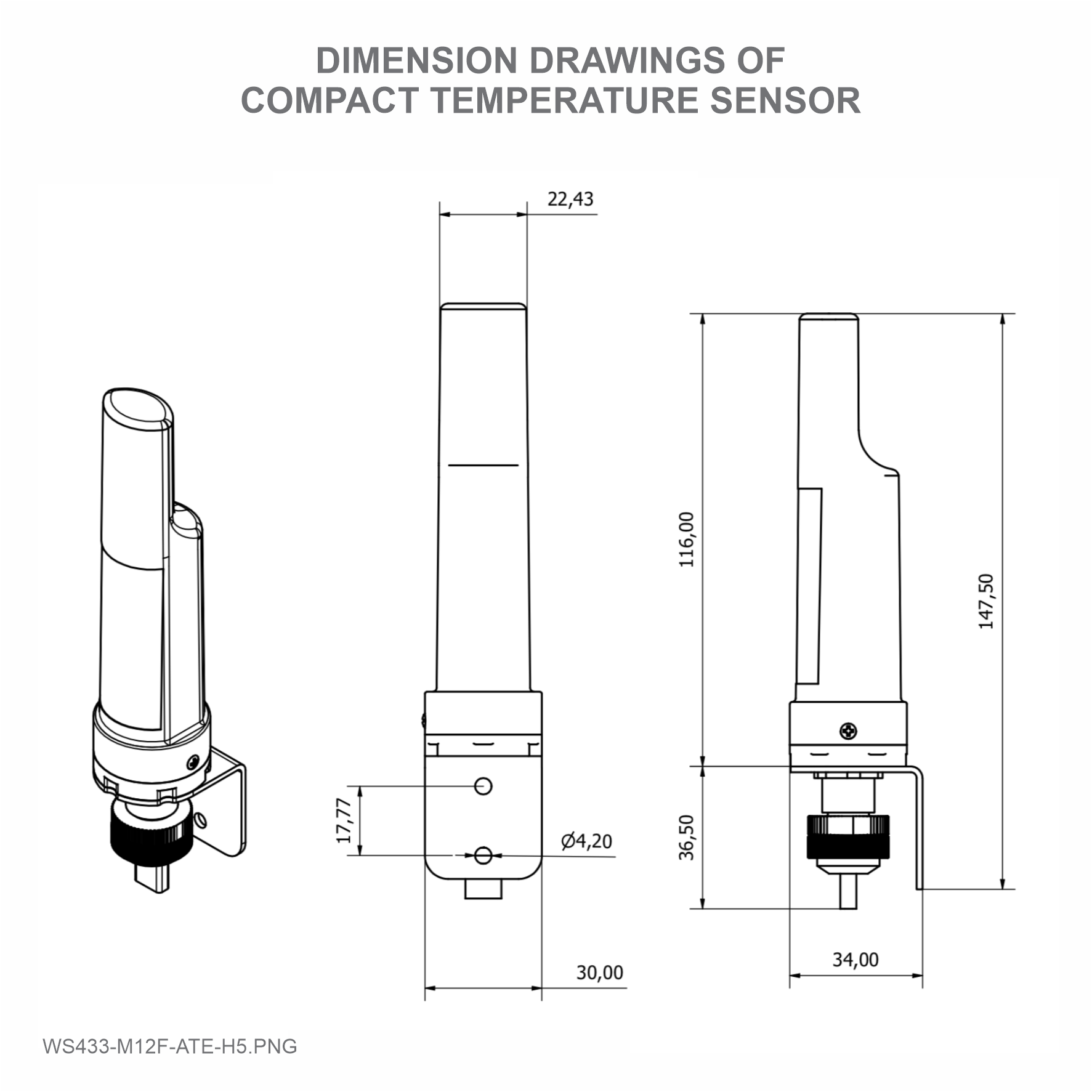

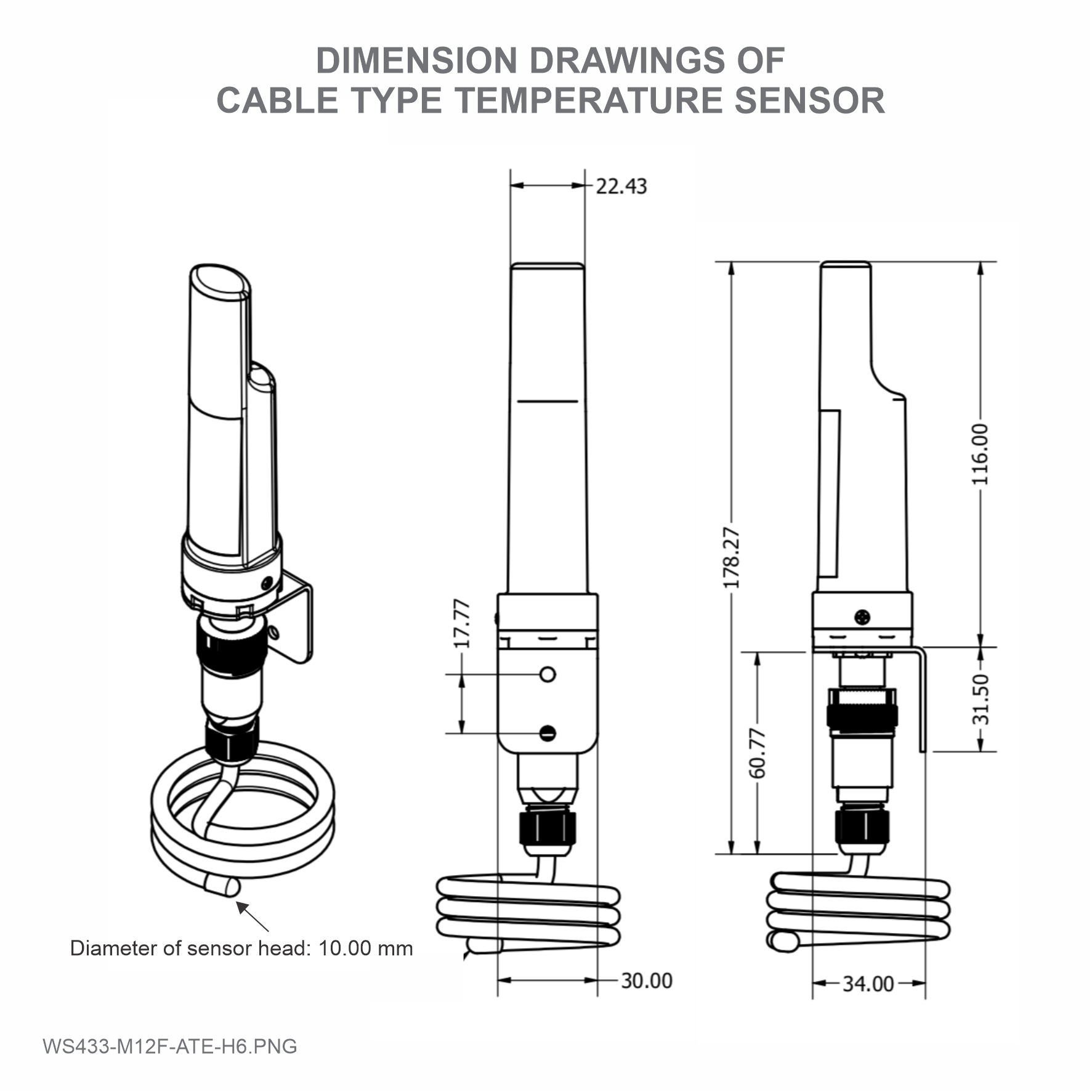

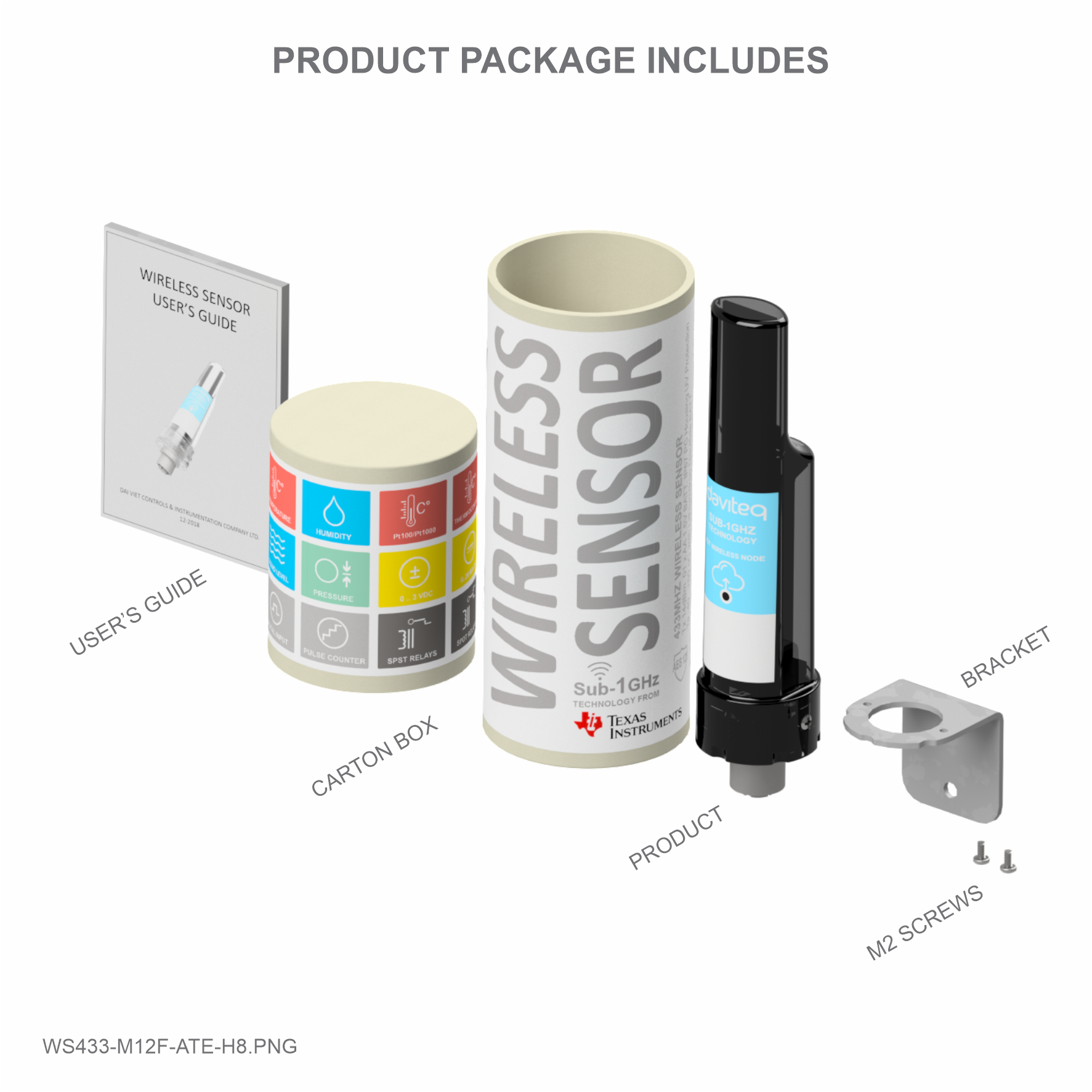

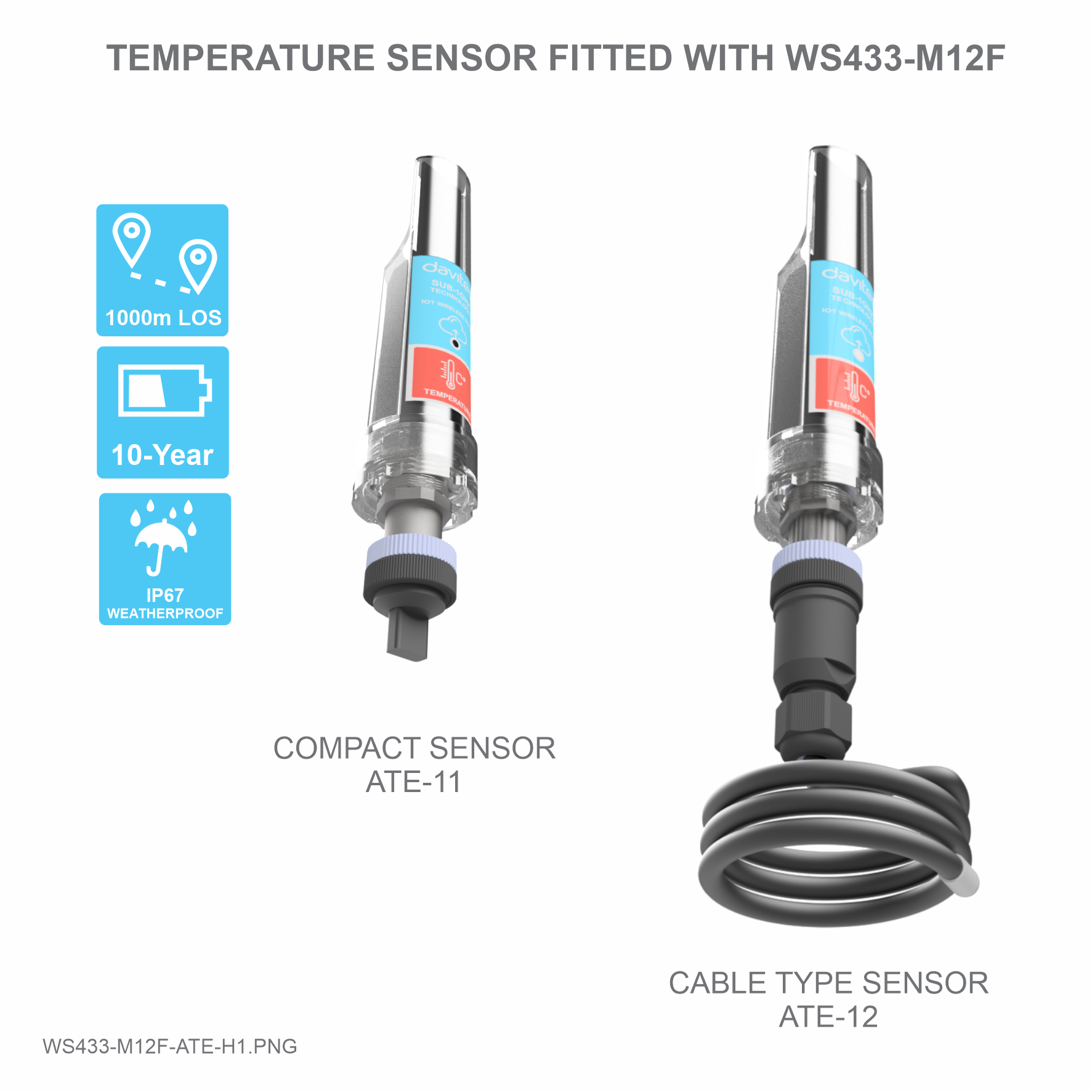

WS433-M12F-ATE-H1.png WS433-M12F-ATE-H2.png
WS433-M12F-ATE-H3.png WS433-M12F-ATH-H4.png
WS433-M12F-ATE-H5.png WS433-M12F-ATE-H6.png
WS433-M12F-ATE-H7.png WS433-M12F-ATE-H8.png

5. Operation principle

When the sensor sampling time interval is reached, For example 2 minutes, the node will wake up and switch ON the power supply to supply the energy to external sensor to start the measurement. Depends on the type and characteristic of external sensor, the sensor will take a certain time to finish the measurement.

For example: the measurement time is 200mS, after this time, the node will read the value of sensor, node will switch OFF power supply to external sensor to save energy.

The measured value is the raw value of the sensor. The measured value can be scaled according to the following formula:

Y = aX + b

          • X: the raw value from the sensor
          • Y: the calculated value for parameter 1's value or parameter 2's value
          • a: constant (default value is 1)
          • b: constant (default value is 0)

So, if there is no user setting for a and b ==> Y = X

The Y value will be compared with Lo and Hi threshold. Please refer below the graph of alarm processing.


Status bytes of sensor Node

  • Hi-Byte is error code
Error code Description
0 No error
1 Just exchange the sensor module but node has not been reset ==> please take out the battery for 20s then install it again to reset node to recognize the new sensor module
2 Error, sensor port M12F shorted to GND
3 Error, sensor port M12F shorted to Vcc
4 Error, sensor port M12F shorted each other
  • Lo-Byte is sensor type
Error code Description
0 No error
1 Just exchange the sensor module but node has not been reset ==> please take out the battery for 20s then install it again to reset node to recognize the new sensor module
2 Error, sensor port M12F shorted to GND
3 Error, sensor port M12F shorted to Vcc
4 Error, sensor port M12F shorted each other

Logic status of parameters

  • Hi-Byte is Logic status of parameter 1
    • If parameter 1's value > high threshold 1 => Hi-Byte of Logic status = 1
    • If parameter 1's value < low threshold 1 => Hi-Byte of Logic status = 0
    • If parameter 1 is digital => Hi-Byte of Logic status = parameter 1's value
    • Timer up 1 = (Total time when Hi-Byte of Logic status = 1)
    • Timer down 1 = (Total time when Hi-Byte of Logic status = 0)
    • RisingEdge counter 1 = (Counter value when Hi-Byte of Logic status changes from 0 to 1)
    • FallingEdge counter 1 = (Counter value when Hi-Byte of Logic status changes from 1 to 0)
  • Lo-Byte is Logic status of parameter 2
    • If parameter 2's value > high threshold 2 => Lo-Byte of Logic status = 1
    • If parameter 2's value < low threshold 2 => Lo-Byte of Logic status = 0
    • If parameter 2 is digital => Lo-Byte of Logic status = parameter 2's value
    • Timer up 2 = (Total time when Lo-Byte of Logic status = 1)
    • Timer down 2 = (Total time when Lo-Byte of Logic status = 0)
    • RisingEdge counter 2 = (Counter value when Lo-Byte of Logic status changes from 0 to 1)
    • FallingEdge counter 2 = (Counter value when Lo-Byte of Logic status changes from 1 to 0)

    Ambient Temperature Sensor Module (ATE)

    • Feature measuring ambient temperature:
      • Measure the ambient temperature, module type IP67
      • Measuring range -20 .. + 85 oC
      • Accuracy ±0.5oC
      • Resolution 0.125oC

    6. Configuration


    6.1 Reset Sensor Node

    • Step 1: Using Philips screw driver to unscrew M2 screw at the side of housing and carefully pull out the top plastic housing in the vertical direction.
    • Step 2: Press the button until you see LED flashes 3 times to reset

    6.2 Data rate configuration 625 kps

    • Take off the sensor cover like Step 1 and press the button until you see LED flashes 2 times for 625 kps option

    6.3 Wireless sensor configuration with co-ordinator

    You can configure the wireless sensor with the co-ordinator by following the steps in the link below:

    http://www.daviteq.com/en/manuals/books/long-range-wireless-co-ordinator-ws433-cl/page/user-guide-for-long-range-wireless-co-ordinator-ws433-cl

    7. Installation

    7.1 Mounting bracket installation

    Locate the place where the wireless sensor is mounted, from that locate the position to mount the bracket;

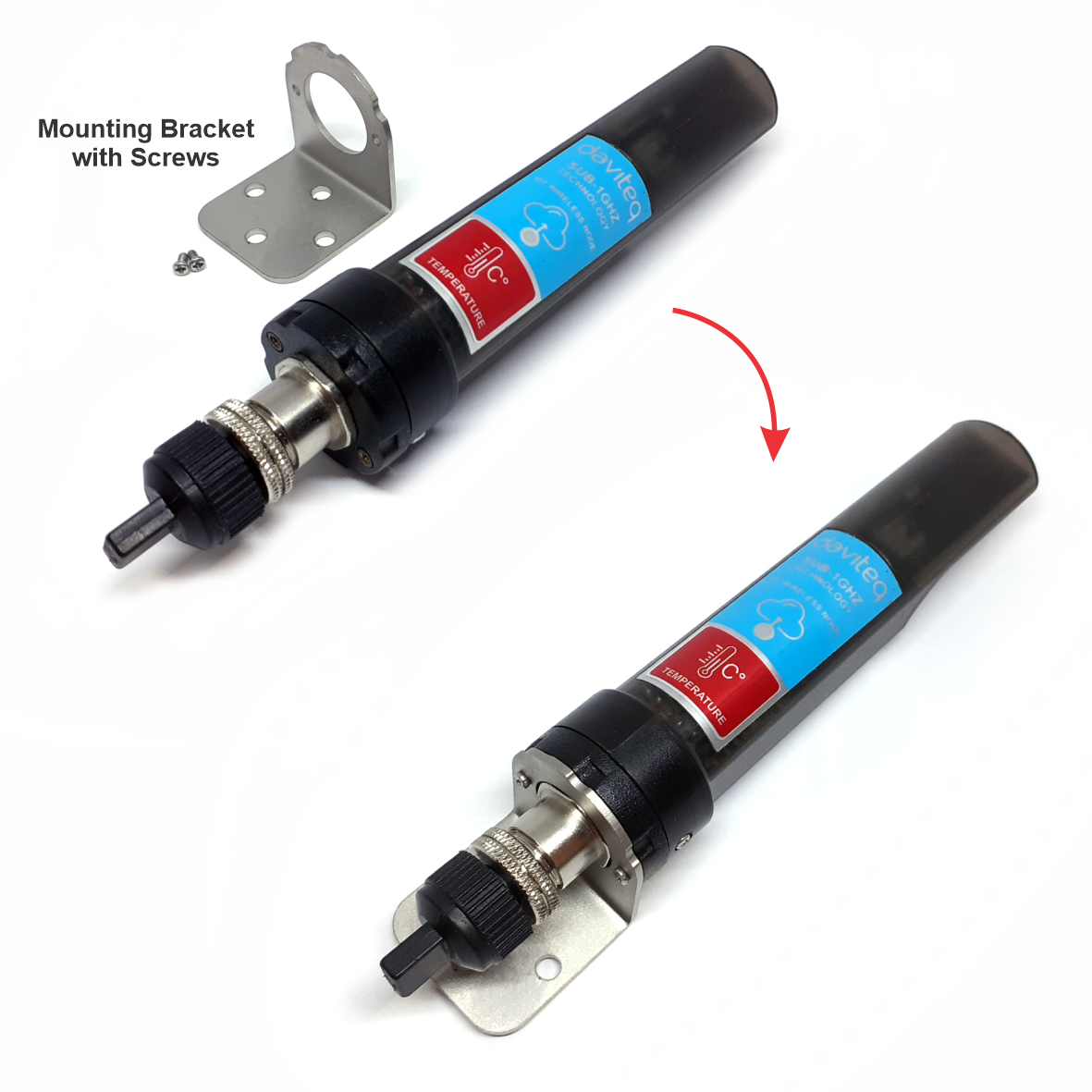

    Placing the wireless module on bracket and secure it by 02 x M2 screws (supplied in accessory bag)

    Note: The bracket can be mounted on the wireless module in both direction, upward or downward

    The mounting bracket is made from hard metallic material. The following steps are for mounting this bracket;


    7.2 Installation location

    The bracket will be fixed on the wall or surface by 2 x M4 screws (supplied by customer) or double-sided 3M tape (included in accessory bag in carton box);

    • DO NOT install the wireless module inside a complete metallic box or housing. The RF signal can not pass through metallic wall;
    • This wireless module would be installed a semi-metallic box, because the RF signal can pass through the non-metal wall/are;
    • The best case is to install the wireles module inside or Non-metallic box;

    Some non-metallic materials: plastic, glass, wood, leather, concrete, cement…

    WS433-M12F-ATE-H10.png WS433-M12F-ATE-H11.png



    7.3 IO Wiring & Sensor installation

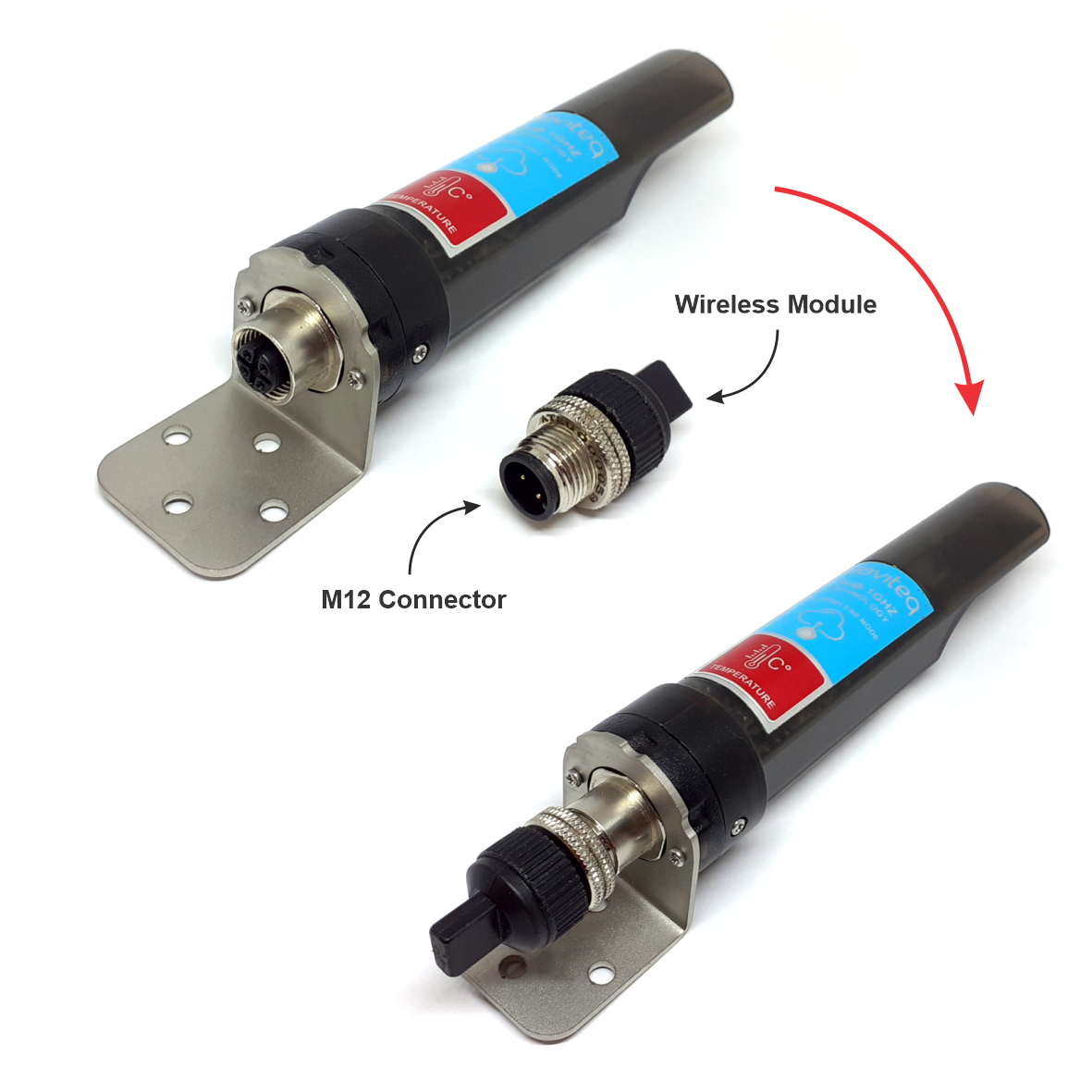

    The sensor module has M12-male connector which is matched with M12-female connector on wireless module;

    Carefully plug the sensor module onto wireless module, using HAND to tighten slowly until stop;

    Note: please DO NOT over tightening by hand or other tool, it can damages the M12 connector;


    7.4 Power Supply & Battery installation

    Steps for battery installation:

    • Using Philips screw driver to unscrew M2 screw at the side of housing


    • Carefully pull out the top plastic housing in the vertical direction


    NOTE: Because of O-ring, it requires to have much pulling force at the beginning, therefore please do it carefully to avoid the damage of circuit board which is very thin (1.00mm);

    • Insert the AA battery, please take note the poles of battery


    • Insert the top plastic housing and locking by M2 screw


    8. Troubleshooting

    No. Phenomena Reason Solutions
    1 The status LED of wireless sensor doesn't light up
    • No power supply
    • Configuration function of the LED is not correct
    • Check that the battery is empty or not installed correctly
    • Reconfigure the led light function exactly as instructed
    2 Wireless sensor not connected to co-ordinator
    • No power supply
    • The configuration function of the RF data rate is incorrect
    • Check that the battery is empty or not installed correctly
    • Reconfigure the RF data rate with the button according to the instructions

    8. Support contacts

    Manufacturer


    Daviteq Technologies Inc
    No.11 Street 2G, Nam Hung Vuong Res., An Lac Ward, Binh Tan Dist., Ho Chi Minh City, Vietnam.
    Tel: +84-28-6268.2523/4 (ext.122)

    Email: info@daviteq.com | www.daviteq.com



    Distributor in Australia and New Zealand


    Templogger Pty Ltd

    Tel: 1800 LOGGER

    Email: contact@templogger.net
