USER GUIDE FOR LORAWAN INTEGRATED HUMIDITY & TEMPERATURE SENSOR WSLRW-ATH

WSLRW-ATH-MN-EN-01

JUL-2020

This document is applied for the following products

SKU WSLRW-ATH HW Ver. 1.2 FW Ver. 1.0
Item Code

WSLRW-ATH-9-10 Wireless LoRaWAN Integrated Humidity & Temperature Sensor, Internal antenna, Type AA battery 1.5VDC, IP67, 900-930 Mhz
WSLRW-ATH-8-10 Wireless LoRaWAN Integrated Humidity & Temperature Sensor, Internal antenna, Type AA battery 1.5VDC, IP67, 860-870 Mhz

0. Configuration Check List


STEP 1: Configure End Device

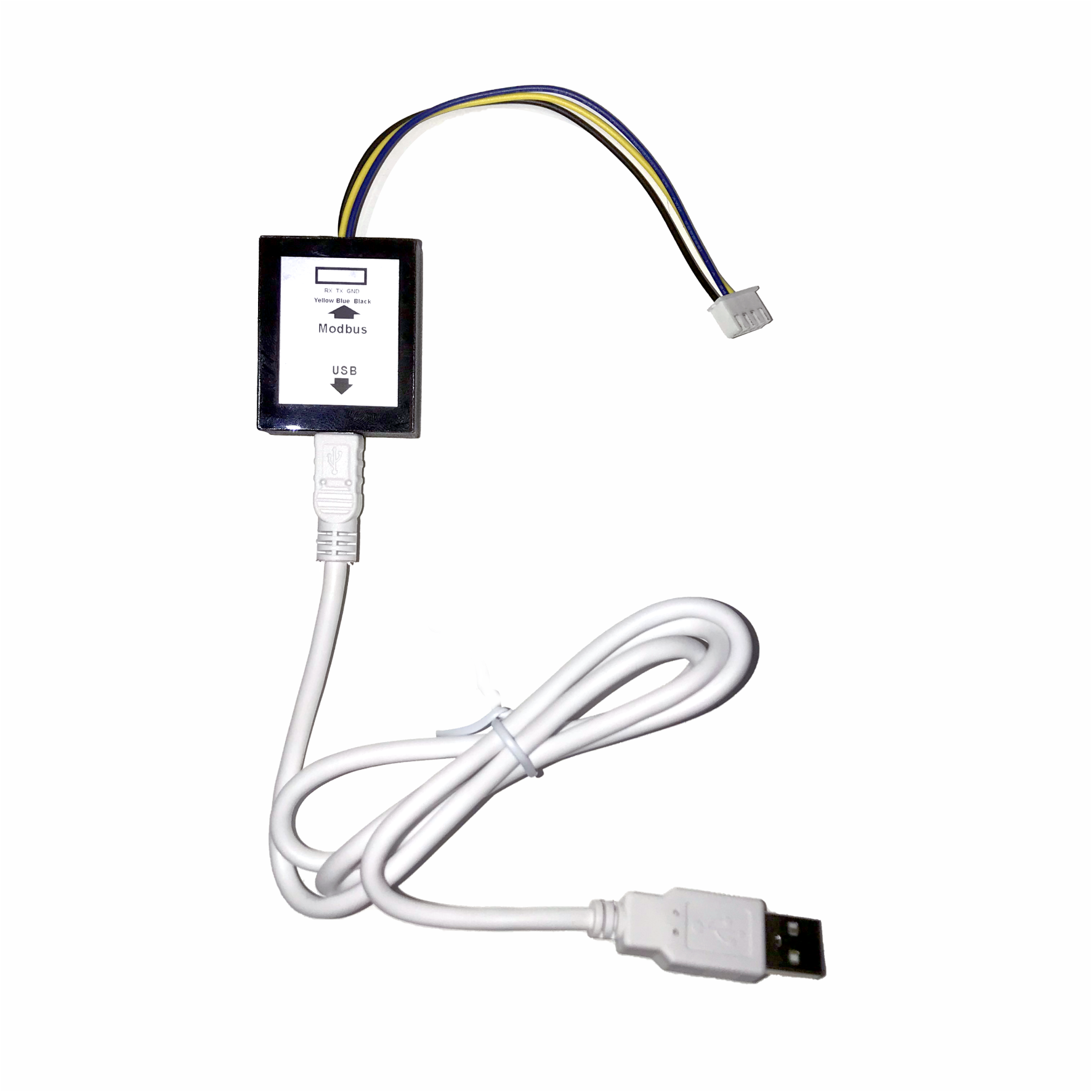

(Using Modbus Configuration Cable)

Setting value (Example)

1. Select region
AS923, IN865, EU868,.. (refer to register address 317)
2. End Device Operation OTAA or ABP
  1. Write AppEUI information from Application Server to Lorawan End Device;
  2. Write AppKey (created by user) information for Lorawan End Device and Application Server.
  1. Write DevEUI information from Application Server to Lorawan end device;
  2. write Network Session Key and App Session Key (created by user) information to Lorawan end device (and Application Server).
3. Configure "cycle send data"
900 sec (Defaut)
4. Configure "sensor sampling_rate" 120 sec (Defaut)
5. Configure parameters of sensor (Refer to Check data configuration table)

STEP 2:  Configure the operation of LoRaWAN Gateway

(Ex: URSALINK Gateway)

1. Configure the information in the General tab

Server address, Server port (For more information)

2. Configure the information in the Radio tab

Select the Region Region (Other parameters to default)

STEP 3:  Configure the operation of LoRaWAN Gateway on Network Server

(Ex: URSALINK Gateway with Thethingsnetwork)



1. Gateway ID registration Gateway ID is the GatewayEUI information on the Gateway
2. Frequency Plan parameters configuration

Asia 920-923MHz, Europe 868MHz,...


3. Router parameters configuration




4. Check the connection of the gateway to the network server

The Gateway status LED lights up and displays the message "Status: conneted" on the Thethingsnetwork

STEP 4:  Configure the operation of Application Server on Network Server



1. App ID registration



2. Handler parameters configuration



STEP 5: Register Lorawan End Device on Application Server on Thethingsnetwork





1. ID Registration



2.Select operation mode

OTAA or ABP

    • OTAA

Configure parameters DevEUI and AppKEY

    • ABP

Configure parameters Device Address, Network Session Key, App Session Key

1. Functions Change Log

HW Ver. FW Ver. Release Date Functions Change

1.1

1.0.0

21-July-2020



1.1

1.1.x

05-Oct-2020

  • Data frame improvements
  • Fix the Watchdog bug

1.1

1.2.0

12-Oct-2020

  • The minimum frequency of sending data packets to Gateway is 15 seconds
  • When connecting to network server with OTAA failure, it will not read sensor value

2. Introduction

WSLRW-ATH is the LoRaWAN Integrated Ambient Humidity & Temperature Sensor, it utilises Digital capacitance humidity sensor to deliver high accuracy and stable measurement. With Ultra-low power design and smart firmware allow the sensor can last up to 10 years with 2 x AA battery (depends on configuration). The sensor will transmit data in kilo-meters distance to LoRaWAN gateway, any brand on the market. There are a lot of applications as environment monitoring for office, warehouse, data center, hospital, agriculture...


3. Specification

SENSORS SPECIFICATION:
Sensor Digital type, factory calibrated, output both Humidity & Temperature values
Humidity measuring range & accuracy 0 .. 100 %RH, +/- 2.0%
Humidity resolution 0.1%
Temperature measuring range & accuracy -40 .. + 85 oC, +/- 0.2 oC
Temperature resolution 0.1 oC
Sensor Filter 20um Alloy sintered filter
LoRaWAN SPECIFICATION:
Data rate 250bps .. 5kbps
Antenna Internal Antenna 2.67 dbi
Battery 02 x AA 1.5 VDC, working time up to 10 years, battery not included
RF Frequency and Power 860..930Mhz, +14 .. +20 dBm, configurable
Protocol LoRaWAN, class A
Data sending modes Interval time and when alarm occurred
RF Module complies to ETSI EN 300 220, EN 303 204 (Europe) FCC CFR47 Part15 (US), ARIB STD-T108 (Japan)
Vietnam Type Approval
Working temperature -40oC..+60oC (with AA L91 Energizer)
Dimensions H137xW73xD42
Net-weight 250 grams
Housing Polycarbonate & POM plastic, IP67

4. Operation Principle

4.1 LoRaWAN protocol specifications

4.1.1 LoRaWAN Sensor protocol specifications

  • LoRaWAN Protocol Version 1.1.0
  • Application Server Version 1.3.0.0
  • MAC Layer Version 4.4.2.0
  • Radio Standards: LoRa Alliance Certified
  • LoRaWAN Zone: LoRa Alliance AS923, KR920, AU915, US915, EU868, IN865, RU864
  • Class A
  • Join Active: OTAA / ABP
  • Network Mode: Public Network / Private Network
  • Tx Power: upto 20 dBm
  • Frequency 860 - 930Mhz
  • Date rate 250 bps - 5kbps
  • Spreading factor SF12 - SF7
  • Bandwidth 125 kHz
  • Unconfirmed-data message
  • LoRaWAN application port for certification: 224

4.1.2 Data rate of LoRaWAN Sensor

Data rate name

Data rate (bps)

Spreading factor (SF)

Bandwidth (kHz)

Region

DR2

980

SF10

125

AS923, AU915

DR3

1760

SF9

125

DR4

3125

SF8

125

DR5

5470

SF7

125

Data rate name

Data rate (bps)

Spreading factor (SF)

Bandwidth (kHz)

Region

DR0

980

SF10

125

US915

DR1

1760

SF9

125

DR2

3125

SF8

125

DR3

5470

SF7

125

Data rate name

Data rate (bps)

Spreading factor (SF)

Bandwidth (kHz)

Region

DR0

250

SF12

125

KR920, EU868, IN865, RU864

DR1

440

SF11

125

DR2

980

SF10

125

DR3

1760

SF9

125

DR4

3125

SF8

125

DR5

5470

SF7

125

4.1.3 Tx power of LoRaWAN sensor

Max EIRP (dBm)

Max Tx Power (dBm)

Region

16

16

AS923

14

14

KR920

30

20

AU915

30

20

US915

16

16

EU868

30

20

IN865

16

16

RU864

4.2 The principle of operation of the LoRaWAN sensor

When starting the power supply, the LoRaWAN sensor has 60 seconds to allow configuration to operate via the Configuration Cable with the Modbus RTU protocol. After 60 seconds, the first packet will be sent, then the LoRaWAN sensor will send the next packets in the following cases:

    • Case 1:
      • When it reaches the frequency of taking data, the LoRaWAN sensor will wake up to measure and calculate. Then:
        • If the measured value exceeds the High or Low setting thresholds, the packet will be sent to the Gateway and then asleep;
        • If NOT then sleep without sending data.

          NOTE:

          Once sending the data to Gateway by this alarm event, the timer of sending time interval will be reset;

    • Case 2: When the sending time interval is reached, the LoRaWAN sensor wakes up to measure and calculate and send data to Gateway immediately, regardless of value.
    • Case 3: By using the magnet key, the LoRaWAN sensor can be triggered to send data to Gateway immediately.

    NOTE:

    The time between sending data for Class A is at least 3 seconds


    WSLRW-AG-H12.png WSLRW-AG-H13.png

    4.3 Principle of operation LoRaWAN Network


    The LoRaWAN Gateway function is Packet Forwarder so:

    • Between Gateway and End Device: Gateway receives data packets from End Device via RF connection, so it is recommended to configure Radio parameters (Note: the packet that Gateway receives is encrypted)
    • Between Gateway and Network Server: Gateway forwards data packets to the Network server via an IP connection, so it is recommended to configure Network parameters such as Server Address, Server Uplink Port, Server Downlink Port, ..

    LoRaWAN Network is secured as follows:

    • Network section key (NwkSKey) to ensure the security of communications on the Network
    • Application session key (AppSKey) to ensure data security between End Device and Application Server
    • Special keys of the device such as DevEUI, AppEUI, Gateway EUI, Device Address. Therefore, the data packet that the Gateway receives is encrypted and decrypted on the Application server.

    To End Device connect to the Network server, you need to register in the following two ways:

    • Activation with OTAA (Over-the-Air activation): is the process of joining the Network automatically. Previously, both End Device and Application Server installed the same DevEUI code, AppEUI and AppKey. During activation, AppKey will generate 2 security keys for End Device and Network, which are:
      • Network session key (NwkSKey): is the key to secure communication commands on MAC layer between End Device and Network server.
      • Application session key (AppSKey): is the key to secure data packets between End Device and Application server.

    ATTENTIONS:

    * OTAA mode must be successfully activated in order for the End Device to send data packets to the Network through the Gateway;

    * OTAA mode only need to activate once, if the device is reset or battery replacement, it will activate OTAA again;

    * When the End Device is connected to the Network server, whether the Gateway is reset or the power is restarted, it will not need to activate OTAA.

      • Activation by ABP (Activation by Personalization): is the process of joining Network manually. Device Address, Network session key (NwkSKey) and Application session key (AppSKey) codes must be stored inside the End Device and Application server, so when the End Device sends data packets to the Network server, it will also send the security codes to activated.

      4.4 Configure the LoRaWAN Network

      4.4.1 Configure End Device operation according to OTAA

      Configuration parameters for the End Device to be activated by OTAA as the table below:

      Parameter settings

      Setting value (example)

      Description

      Region code

      AS923

      The area is located in the LoRa Alliance

      Center Frequency

      923400000

      Center frequency

      Join Mode

      OTAA

      Device activation type on Network Server

      DevEUI

      34 35 31 31 4B 37 75 12

      Device ID's unique ID number

      => Set this ID number for the Application server

      AppEUI

      70 B3 D5 7E D0 02 D5 0B

      Application server's unique ID number (random or user generated)
      => Set this ID number for End Device

      AppKey

      2B 7E 15 16 28 AE D2 A6 AB F7 15 88 09 CF 4F 3C

      Key Number for generating 2 NwkSKey and AppSKey security keys created by the user (factory-created by default)
      => Used to install for both the Device and Application Server End

      ATTENTIONS:

      * The AppEUI number from Application Server => then installed for the End Device. AppEUI is randomly generated by the Application server or by the user;

      * The number of AppKeys during OTAA activation will generate two security keys, Lora NwkSKey and AppSKey, which are used for both End Device and Network.

      4.4.2 Configure End Device operation according to ABP

      Configuration parameters for the End Device to be activated by ABP as the table below:

      Parameter settings

      Setting value (example)

      Description

      Region code

      AS923

      The area is located in the LoRa Alliance

      Center Frequency

      923400000

      Center frequency

      Join Mode

      ABP

      Device activation type on Network Server

      Device Address

      12 34 56 78

      End Device Address created by Application server
      => Set Device Address for End Device

      NwkSKey (Network session key)

      2B 7E 15 16 28 AE D2 A6 AB F7 15 88 09 CF 4F 3C

      NwkSKey number created by the user to install and use for both End Device and Application Server

      AppSKey (Application session key)

      2B 7E 15 16 28 AE D2 A6 AB F7 15 88 09 CF 4F 3C

      AppSKey number generated by the user to install for both End Device and Application Server

      4.4.3 Configure Gateway operations

      4.4.3.1 Configure the Gateway to receive data packets from the End Device.

      Radio settings need to be set as:

      * Region code: AS923, KR920, AU915, US915, EU868, IN865, RU864

      * Center Frequency, Channels, Bandwidth (recommends using the default configuration created by the system)

      Let's take an example to configure the Gateway operation of URSALINK (Model: UG85-L00E-915)





      4.4.3.2 Configure the Gateway to communicate with the Public Network Server

      Let's take an example of configuring Gateway UG85 to connect with "thethingsnetwork.org" in Asia:

      Currently thethingsnetwork only supports the connection protocol with Gateway is Semtech UDP Packet Forwarder.

      https://www.thethingsnetwork.org/docs/gateways/packet-forwarder/semtech-udp.html

      Parameter settings

      Setting value (example)

      Description

      Gateway EUI

      24e124fffef038fd

      Gateway's unique ID number
      => Set this ID number for Application server

      Server Address

      router.as1.thethings.network

      Server Uplink Port

      1700

      • The port address of the Semtech server: 1700
      • The port address of the Ursalink server: 1883
      • The port address of the Loriot server: 1780

      Server Downlink Port

      1700

      • The port address of the Semtech server: 1700
      • The port address of the Ursalink server: 1883
      • The port address of the Loriot server: 1780

      Network mode

      Public LoRaWAN







      4.4.4 Register the Application server on the Public Network "thethingsnetwork.org"

      4.4.4.1 Register the Gateway on Public Network "thethingsnetwork.org" as shown below:
      • The current network only supports the Gateway connection protocol, "Semtech UDP protocol" is Semtech UDP Packet Forwarder.
        • Then power the Gateway and observe the message "Status: connected" => Registration of the Gateway on the Application successfully.



      4.4.4.2 Register Application on Public Network "thethingsnetwork.org" as shown below:



      4.4.4.3 Register End Device on Application:





      4.5 LED meaning

      • RED LED:

        • Fixed ON: due to noise caused peripheral components (i2c, spi, uart, timer, rtc, wdt, ...) do not initialize.
        • Flashing 10ms ON / 10s OFF: Activation by OTAA on the Network server failed.
        • Flashing 10ms ON / 2s OFF:  Sending data packet to Gateway failed.
      • GREEN LED: Flashing 100ms ON / OFF when sending data packet to Gateway.
      • BLUE LED:
        • Flashing 1s ON / 1s OFF for the first 60 seconds when booting (insert batteries or connected external sources), after 60 seconds OFF.
        • ON during the LoRaWAN sensor receives data packets from the Network server and OFF when received.

      4.6 Process of measurement

      When the LoRa sensor wakes up, it will supply power to the external sensor module so that the module can start measuring. After measuring it will turn off the power to the module.

      The measured value is the raw value of the sensor module, which can be ambient temperature, ambient humidity, etc.

      The measurement value can be scaled according to the following formula:

      Y = aX + b

              • X: the raw value from module sensor
              • Y: the calculated value will be sent to Sigfox base station in the payload data.
              • a: constant (default value is 1)
              • b: constant (default value is 0)

      4.7 Payload Data

      The folllowing is the format of payload data will be sent to Sigfox server. Length is 6 bytes, it is future-proof for expansion to 12 bytes.

      Sensor type (1 byte)

      Status (1 byte)

      1st - Parameter (4 bytes)

      2nd - Parameter (4 bytes)

      Meaning of Data in the Payload

      Data Size (byte) Bit Format Meaning

      Sensor type

      1

      all

      Uint8

      Sensor type = 0x02 means LoRaWAN Node with I2C Humidity & Temperature
      Sensor type = 0xFF means no sensor

      Status: battery level

      1

      Bit 7 and 6

      Uint8

      Battery capacity in 04 levels

      11: battery level 4 (99%)

      10: battery level 3 (60%)

      01: battery level 2 (30%)

      00: battery level 1 (10%)

      Status: error



      Bit 5 and 4



      Node status

      01: error

      00: no error

      Status: alarm 1



      Bit 3 and 2



      Alarm status of 1st - Parameter (Y1 value)

       11 : Hi alarm
       01 : Lo alarm
       00 : No alarm

      Status: alarm 2



      Bit 1 and 0



      Alarm status of 2nd - Parameter (Y2 value)

       11 : Hi alarm
       01 : Lo alarm
       00 : No alarm

      1st - Parameter

      4

      all

      Float

      Y1 value: humidity value (%)

      2nd - Parameter

      4

      all

      Float

      Y2 value: temperature value (oC)

      5. Configuration

      Using the configuration cable to connect to the sensor as below picture.

      Serial port configuration on the computer:

      * COMPort, Baudrate: 9600, Parity: None, Stop bit: 1, Data bit: 8

      * Modbus RTU: Reading data by Function 3 / Writing data by Function 16.

      5.1 Step to configure

      NOTE:

      The Modbus configuration can only be performed in the first 60s after power up the LoRaWAN sensor. After 60s, if user can not finish the configuration process, user need to reset the power of LoRaWAN sensor again, by removing battery in at least 15s.

      Step 1: Install the Modbus Configurator Software in the link below

      https://filerun.daviteq.com/wl/?id=qK0PGNbY1g1fuxTqbFW9SXtEvCw7bpc6

      How to use the Modbus configuration software

      Step 2: Plug the configuration cable to computer via usb port and install the driver;

      Step 3: Open the plastic housing with L hex key to unscrew M4 screws at the side of housing


      Step 4: Plug the connector to the configuration port;


      Step 5:  Import the configuration file by importing the csv file: Go to MENU: FILE / Import New / => select the file with name CONFIGURATION TEMPLATE FILE FOR LORAWAN SENSOR FW1.0.csv (in the link below). Then click Connect;

      CONFIGURATION TEMPLATE FILE FOR LORAWAN SENSOR FW1.0


      To write new value to the device:

      First, you need to write the password in "password for setting", after reading the value to check ok, you can write the new value AppEUI, AppKey, ...

      You only have 60 seconds after plugging the configuration cable or the power supply into the device for configuration.

      5.2 Register table

      Here is the table of Data will be read by Modbus tool

      Modbus Register (Decimal)

      Modbus Register (Hex)

      Function Code

      # of Registers

      Description

      Range

      Default

      Format

      Property

      Comment

      0

      0

      3

      5

      device info



      WSLRW-I2C

      string

      Read

      Wireless Sensor LoRaWAN - I2C

      5

      5

      3

      4

      firmware version



      1.00ddmm

      string

      Read

      ddmm = day / month

      9

      9

      3

      2

      hardware version



      1.10

      string

      Read



      11

      B

      3

      4

      lorawan protocol version



      01.01.00

      string

      Read

      lorawan v1.1.0

      15

      F

      3

      6

      application version



      01.03.00.00

      string

      Read

      application server v1.3.0.0

      21

      15

      3

      6

      mac layer version



      04.04.02.00

      string

      Read

      mac layer v4.4.2.0

      27

      1B

      3

      4

      deviceEUI



      hex

      Read

      End Device's EUI number, used to register the product on the Network Server by OTAA

      31

      1F

      3

      4

      lora appEUI



      hex

      Read

      Application server's EUI number is used to register the product on the Network Server by OTAA

      35

      23

      3

      8

      lora appKey



      hex

      Read

      The number of keys used to create two security keys of the End Device, used to register the product on the Network Server by OTAA

      43

      2B

      3

      8

      lora nwkSkey



      hex

      Read

      key number encrypts the communication command of the MAC layer of the End Device, which is used to register the product on the Network Server by ABP

      51

      33

      3

      8

      lora appSkey



      hex

      Read

      End Device data encryption key number, used to register the product on the Network Server by ABP

      59

      3B

      3

      2

      device address



      0

      uint32

      Read

      End Device address created by Application server, used to register the product on the Network server by ABP

      61

      3D

      3

      2

      network ID



      0

      uint32

      Read

      Network server ID number, used to register the product on the Network server by ABP

      63

      3F

      3

      2

      join mode



      OTAA

      string

      Read

      OTAA: Over-the-Air activation, ABP: Activation by Personalization

      65

      41

      3

      4

      network mode



      PUBLIC

      string

      Read

      PUBLIC, PRIVATE

      69

      45

      3

      3

      region code



      AS923

      string

      Read

      1: AS923, 2: KR920, 3: AU915, 4: US915, 5: EU868, 6: IN865, 7: RU864, 8: CN779, 9: CN470, 10: EU433

      72

      48

      3

      4

      data rate



      DR2:980

      string

      Read

      DR0:250, DR1:440, DR2:980, DR3:1760, DR4:3125, DR5:5470

      76

      4C

      3

      3

      bandwidth



      BW125

      string

      Read

      BW125, BW250, BW500

      79

      4F

      3

      2

      spread factor



      SF10

      string

      Read

      SF12, SF11, SF10, SF9, SF8, SF7

      81

      51

      3

      4

      activation of ADR



      ADR OFF

      string

      Read

      ADR ON, ADR OFF

      85

      55

      3

      1

      class



      A

      string

      Read



      103

      67

      3

      1

      sensor type

      1-255



      uint16

      Read

      1-254: sensor type, 255: no sensor

      104

      68

      3

      1

      battery level

      0-3



      uint16

      Read

      4 levels of battery capacity status

      105

      69

      3

      1

      error status

      0-1



      uint16

      Read

      Error code of sensor, 0: no error, 1: error

      106

      6A

      3

      1

      prm1 alarm status

      0-2



      uint16

      Read

      Alarm status of parameters 1, 0: none, 1: Low, 2: High

      107

      6B

      3

      1

      prm2 alarm status

      0-2



      uint16

      Read

      Alarm status of parameter 2

      108

      6C

      3

      2

      prm1 value



      float

      Read

      Parameter value 1

      110

      6E

      3

      2

      prm2 value



      float

      Read

      Parameter value 2

      112

      70

      3

      1

      battery %

      10%, 30%, 60%, 99%



      uint16

      Read

      % Value of battery capacity

      113

      71

      3

      2

      battery voltage

      0-3.67 vdc



      float

      Read

      Value of battery voltage

      115

      73

      3

      2

      mcu temperature

      oC



      float

      Read

      Temperature value of RF module

      117

      75

      3

      1

      mcu vref

      0-3.67 vdc



      uint16

      Read

      Vref value of RF module

      118

      76

      3

      1

      button1 status

      0-1



      uint16

      Read

      Button state, 0: No button pressed, 1: Button pressed

      119

      77

      3

      1

      button2 status

      0-1



      uint16

      Read

      Button status, 0: No magnetic sensor detected, 1: Magnetic sensor detected

      Here is the table for Configuration:

      Modbus Register (Decimal)

      Modbus Register (Hex)

      Function Code

      # of Registers

      Description

      Range

      Default

      Format

      Property

      Comment

      256

      100

      3 / 16

      1

      modbus address

      1-247

      1

      uint16

      R/W

      Modbus address of the device

      257

      101

      3 / 16

      1

      modbus baudrate

      0-1

      0

      uint16

      R/W

      0: 9600, 1: 19200

      258

      102

      3 / 16

      1

      modbus parity

      0-2

      0

      uint16

      R/W

      0: none, 1: odd, 2: even

      259

      103

      3 / 16

      9

      serial number



      string

      R/W

      (Password)



      268

      10C

      3 / 16

      2

      password for setting



      uint32

      R/W

      (Password)

      password 190577

      270

      10E

      3 / 16

      4

      lora appEUI



      hex

      R/W

      (Password)

      Application server's EUI number, used to register the product on the Network Server by OTAA

      274

      112

      3 / 16

      8

      lora appKey



      hex

      R/W

      (Password)

      The number of keys used to create two security keys of the End Device, used to register the product on the Network server by OTAA

      282

      11A

      3 / 16

      8

      lora nwkSkey



      hex

      R/W

      (Password)

      key number encrypts the communication command of the MAC layer of the End Device, which is used to register the product on the Network Server by ABP

      290

      122

      3 / 16

      8

      lora appSkey



      hex

      R/W

      (Password)

      End Device data encryption key number, used to register the product on the Network Server by ABP

      298

      12A

      3 / 16

      2

      device address



      uint32

      R/W

      (Password)

      End Device address created by Application server, used to register the product on the Network server by ABP

      300

      12C

      3 / 16

      2

      network ID



      uint32

      R/W

      (Password)

      Network server ID number, used to register the product on the Network server by ABP

      302

      12E

      3 / 16

      1

      activation mode

      0-1

      1

      uint16

      R/W

      (Password)

      1: OTAA (Over-the-Air Activation), 0: ABP (Activation by Personalization)

      304

      130

      3 / 16

      1

      application port

      1-255

      1

      uint16

      R/W

      (Password)

      Port 224 is reserved for certification

      317

      13D

      3 / 16

      1

      region

      1-7

      1

      uint16

      Read/Write(Password)

      1: AS923, 2: KR920, 3: AU915, 4: US915, 5: EU868, 6: IN865, 7: RU864, 8: CN779, 9: CN470, 10: EU433

      318

      13E

      3 / 16

      1

      data rate



      7

      uint16

      R/W

      (Password)

      0: 250 bps, 1: 440 bps, 2: 980 bps, 3: 1760 bps, 4: 3125 bps, 5: 5470 bps

      319

      13F

      3 / 16

      1

      tx power

      2-20

      16

      uint16

      R/W

      (Password)

      tx power: 2,4,6,8,10,12,14,16,18,20

      320

      140

      3 / 16

      1

      adaptative data rate

      0-1

      0

      uint16

      R/W

      (Password)

      Automatically adjust data rate, 0: disable, 1: enable

      334

      14E

      3 / 16

      2

      cycle send data



      900

      uint32

      R/W

      sec (data sending cycle)

      338

      152

      3 / 16

      1

      alarm limt



      44

      uint16

      R/W

      limit the number of events / day

      340

      154

      3 / 16

      2

      sensor1: sampling_rate



      120

      uint32

      R/W

      sec (frequency of data taken from sensor 1)

      348

      15C

      3 / 16

      2

      prm1: a



      1

      float

      R/W

      Scale parameter "a" of sensor 1

      350

      15E

      3 / 16

      2

      prm1: b



      0

      float

      R/W

      Scale parameter "b" of sensor 1

      354

      162

      3 / 16

      2

      prm1: High Threshold



      100000

      float

      R/W

      High threshold value of sensor 1

      356

      164

      3 / 16

      2

      prm1: High Hysteresis



      10000

      float

      R/W

      High hysteresis value of sensor 1

      358

      166

      3 / 16

      2

      prm1: Low Threshold



      0

      float

      R/W

      Low threshold value of sensor 1

      360

      168

      3 / 16

      2

      prm1: Low Hysteresis



      10000

      float

      R/W

      Low hysteresis value of sensor 1

      362

      16A

      3 / 16

      2

      prm1: High Cut



      100000

      float

      R/W

      Upper limit value of sensor 1

      364

      16C

      3 / 16

      2

      prm1: Low Cut



      0

      float

      R/W

      Lower limit value of sensor 1

      366

      16E

      3 / 16

      2

      prm2: a



      1

      float

      R/W

      Scale parameter "a" of sensor 2

      368

      170

      3 / 16

      2

      prm2: b



      0

      float

      R/W

      Scale parameter "b" of sensor 2

      372

      174

      3 / 16

      2

      prm2: High Threshold



      100000

      float

      R/W

      High threshold value of sensor 2

      374

      176

      3 / 16

      2

      prm2: High Hysteresis



      10000

      float

      R/W

      High hysteresis value of sensor 2

      376

      178

      3 / 16

      2

      prm2: Low Threshold



      0

      float

      R/W

      Low threshold value of sensor 2

      378

      17A

      3 / 16

      2

      prm2: Low Hysteresis



      10000

      float

      R/W

      Low hysteresis value of sensor 2

      380

      17C

      3 / 16

      2

      prm2: High Cut



      100000

      float

      R/W

      Upper limit value of sensor 2

      382

      17E

      3 / 16

      2

      prm2: Low Cut



      0

      float

      R/W

      Lower limit value of sensor 2

      6. Installation

      6.1 Example application

      WSLRW-ATH-H2.png WSLRW-ATH-H3.png
      WSLRW-ATH-H4.png WSLRW-ATH-H5.png

      6.2 Installation location

      To maximize the distance of transmission, the ideal condition is Line-of-sight (LOS) between the LoRaWAN sensor and Gateway. In real life, there may be no LOS condition. However, the LoRaWAN sensor still communicates with Gateway, but the distance will be reduced significantly.

      ATTENTION:

      DO NOT
      install the LoRaWAN sensor or its antenna inside a completed metallic box or housing, because the RF signal can not pass through the metallic wall. The housing is made from Non-metallic materials like plastic, glass, wood, leather, concrete, cement…is acceptable.


        6.3 Battery installation


        Steps for battery installation:

        Step 1: Using L hex key to unscrew M4 screws at the side of housing and carefully pull out the top plastic housing in the vertical direction


        Step 2: Insert 02 x AA 1.5VDC battery, please take note the poles of battery

        ATTENTION:

        REVERSED POLARITY OF BATTERIES IN 10 SECONDS CAN DAMAGE THE SENSOR CIRCUIT!!!


        Step 3: Insert the top plastic housing and locking by L hex key

        ATTENTION:

        When reinstalling the cover, pay attention to put the PCB edge into the middle slot of the box inside as shown below)


        7. Troubleshooting

        No. Phenomena Reason Solutions
        1 The BLUE LED does not blink when the battery is installed

        Insert the battery in the opposite direction

        Insert the battery in the correct way

        2 The RED LED is always on Due to noise, the peripheral components (i2c, spi, uart, ..) of RF module cannot be initialized After 30s the node will automatically reset. If the noise causes the Watchdog not to initialize, remove the battery and wait for more than 10 seconds, then insert the battery again
        3 The RED LED blinks continuously (10ms ON / 2s OFF) and the Node does not send RF. After more than 10 sending cycles, the Node will automatically reset
        • Operating frequency in that country is prohibited
        • Operating frequency in that country is limited to Data rate, Tx Power
        • Reconfigure the allowed frequency of operation
        • Reconfigure Data rate = DR5 / SF07, Tx Power
        4 RED LED blinks continuously (10ms ON / 2s OFF) and Node sends RF continuously 3s / time but no data. After more than 10 sending cycles, the Node will automatically reset

        Node runs dummy sending mode

        => sent by Gateway to send Downlink packets when users clear Uplink and Downlink counter values on Network Server (build in Gateway) when activated by ABP

        Configuration enabled by OTAA
        5 The RED LED flashes 10ms ON / 10s OFF and the Node does not send RF Node activation by OTAA on Network server has not been successful

        Using Margnet-Key to force Node to send RF continuously for 3 seconds / time

        => when activating by OTAA successfully, the GREEN LED will blink after sending RF

        6 The node sent RF successfully but the GREEN LED did not blink LED is broken Warranty to replace LED
        7 The data packet taken from the Gateway has an incorrect value The data package is encrypted Get the decoded packet on the Application Server
        8 Node sends RF and activates by ABP, on Gateway receives data but Application server has no data The application server still stores the counter values of the previous Uplink and Downlink Delete the counter values of Uplink and Downlink on the Application server
        9 The node does not send RF and the RF module is hot
        • Insert the battery in the opposite direction
        • Short circuit
        Warranty or replacement
        10

        Node does not send RF to Gateway according to the alarm, LED does not blink

        • The alarm configuration is incorrect
        • Running out of the number of alarms set for the day
        • Check alarm configuration
        • Check the configuration for the maximum number of alarms per day
        11

        Node does not send RF to Gateway when activated by the magnetic switch, LED does not blink

        Magnetic switch has malfunctioned

        Read the status of the magnetic switch via modbus (when powering or attaching the battery) to see if the magnetic switch is working.

        12

        Node has blinked LED GREEN when sending RF but the Gateway or Application server cannot received

        • LoRa module on the Gateway is faulty
        • The IP connection (4G / WiFi / ...) on the Gateway is faulty
        • Check Gateway's LoRa status lights on Gateway
        • Check 4G / WiFi status lights on Gateway
        13 The value of the sensor is 0 and sensor_type = 0xFF Lost connection with the sensor
        • Check sensor connection
        • Replace the module sensor
        14 RSSI is weak and often loses data
        • Distance between Node and Gateway is far or there are many obstructions
        • Connection to Antenna problem
        • Install metal nodes or in metal cabinets
        • Configure Data rate = DR0 / SF12
        • Check Antenna position
        • Install Node in a well ventilated location

        8. Support contacts

        Manufacturer


        Daviteq Technologies Inc
        No.11 Street 2G, Nam Hung Vuong Res., An Lac Ward, Binh Tan Dist., Ho Chi Minh City, Vietnam.
        Tel: +84-28-6268.2523/4 (ext.122)

        Email: info@daviteq.com | www.daviteq.com



        Distributor in Australia and New Zealand


        Templogger Pty Ltd

        Tel: 1800 LOGGER

        Email: contact@templogger.net
